Basic Info.
Model NO.
WT323B
Accuracy
1.5°C
Usage
Industrial, Household
Display
Color LCD with Backlight
Material
Laser and Thermocouple
Hygrometer Type
Non-Contact IR Thermometer
Range
-50 ºC~ 850ºC (-58ºF ~ 1562ºF)
D:S
12:1
Response Time
0.5s, 95% Response
Emissivity
0.10~1.00 Adjustable(Preset as 0.95)
Repeatablity
1% Rdg or 1ºCtake The Bigger Value
Power Supply
1.5V Aaabattery*2
Dimensions
108*49*177 mm
Spectral Response
8um~14 Um
K-Type
K-Type Thermocouple
Transport Package
Gift Box
Specification
20cmx13cmx7cm, 0.5kgs, plastic
Trademark
WINTACT
Origin
China
Product Description

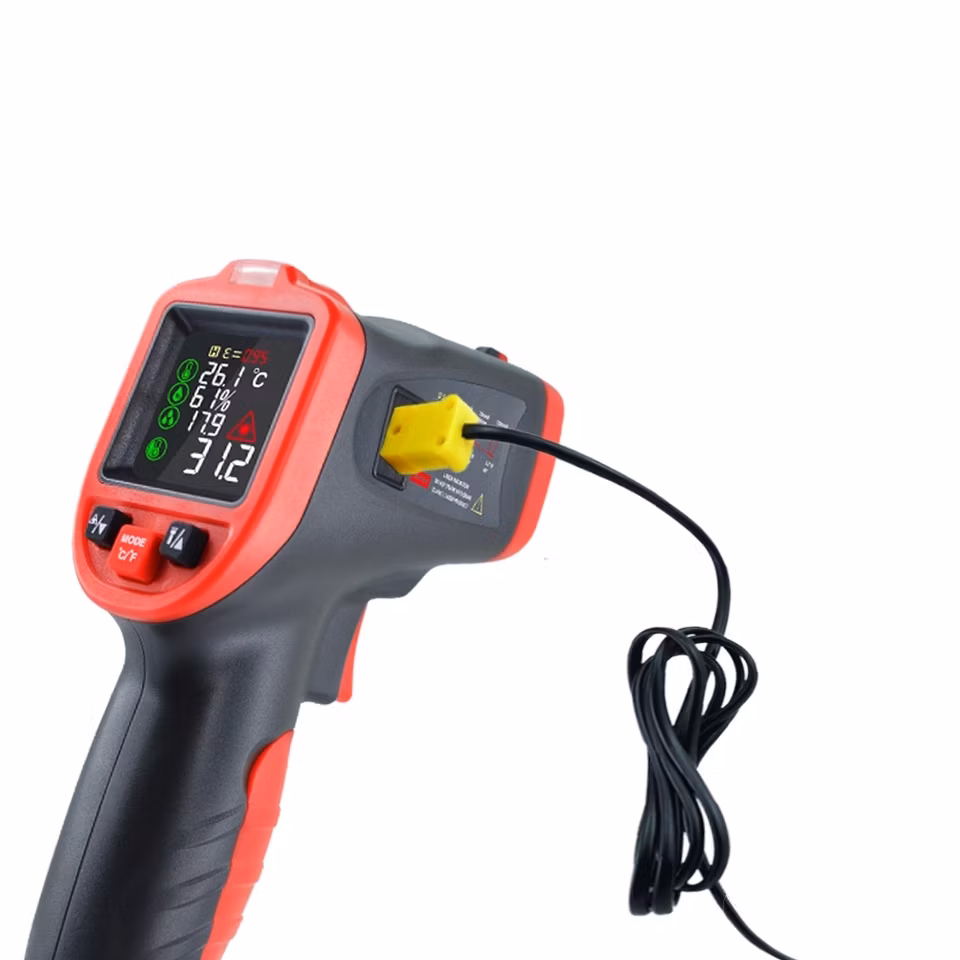

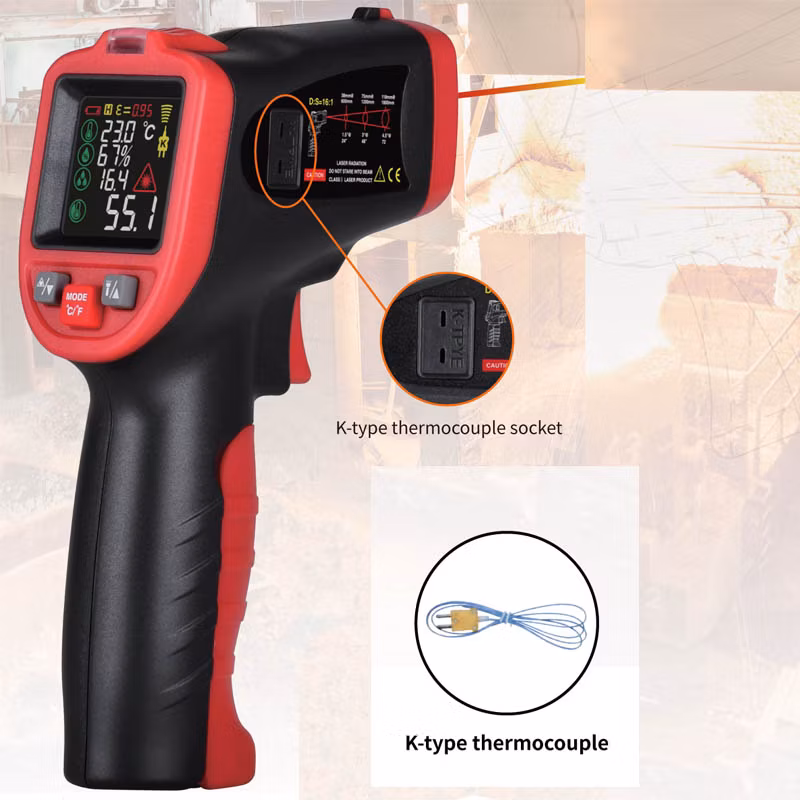

Infrared thermometer with K-type Thermocouple WT323 Series
Introduction:
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot,hazardous or hard-toreach objects without contact safely and quickly. This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor.Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Features:
| item | value |
| Warranty | 1 years |
| Customized support | OEM |
| Place of Origin | China |
| | Guangdong |
| Brand Name | WINTACT |
| Model Number | WT323B |
| LCD | Colorful LCD |
| Temperature measurement range | -50 ºC~ 850ºC (-58ºF ~ 1562ºF) |
| Temperature display accuracy | 0.1ºC |
| Temperature measurement error | ±1.5ºC(±2.7ºF) |
| Emissivity | 0.10~1.00 Adjustable(preset as 0.95) |
| D:S | 12:1 |
| Response wavelength | 8um~14 um |
| Working environment temperature | 0 ºC~40ºC (32ºF ~ 104ºF) |
| Batteries | 1.5V AAAbattery*2(No.7 battery) |
| Weight/dimensions | 202g(including batteries) /108*49*177 mm |
